Slim Area Light
SAL
Slim Area Light

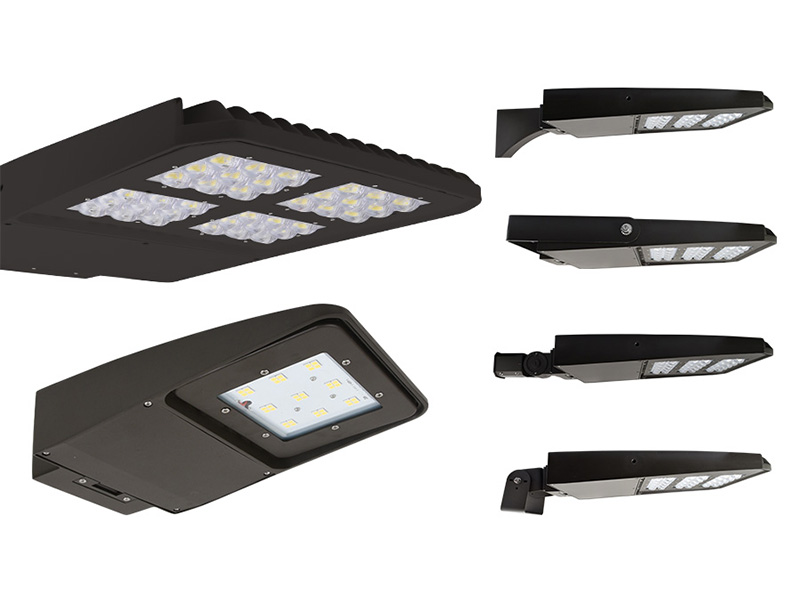

naturaLED® Slim Area Light is constructed with a durable, die-cast aluminum housing and excellent thermal design and is the perfect lighting solution for your parking lot, street, walkway, building flood up/down light and/or as a sign lighter. It provides uniform, consistent color with a wide range of wattage selections to replace from 50W to 1500W HID fixtures. Our fixtures are DLC Premium certified and IP65 rated with five types of mounting options available: Swivel Bracket, Slip Fitter, Yoke, 6” Extruded Arm and Pendant Mount. Compatible integrated autonomous and photocell motion sensors are available as options to address your needs. Energy savings can be as much as 85% while eliminating maintenancecosts in labor and lamp and ballast replacement.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Rating | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 7750 | 360W | 3000K | LED-FXSAL360/30K/DB/3S | 44,796 | 120-277V | 1000-1500W | 15"x22" | Bronze | IP65 | - |
| 7640 | 360W | 4000K | LED-FXSAL360/40K/DB/3S | 43,115 | 120-277V | 1000-1500W | 15"x22" | Bronze | IP65 | Premium |
| 7641 | 360W | 5000K | LED-FXSAL360/50K/DB/3S | 43,907 | 120-277V | 1000-1500W | 15"x22" | Bronze | IP65 | Premium |
| 7733 | 360W | 5000K | LED-FXSAL360/50K/DB/3S/480 | 43,980 | 277-480V | 1000-1500W | 15"x22" | Bronze | IP65 | Premium |
| 7618 | 29W | 4000K | LED-FXSAL29/40K/WH/3S | 3,714 | 120-277V | 100-150W | 8.5"x14" | White | IP65 | Premium |
| 7619 | 29W | 5000K | LED-FXSAL29/50K/WH/3S | 3,729 | 120-277V | 100-150W | 8.5"x14" | White | IP65 | Premium |
| 7622 | 50W | 4000K | LED-FXSAL50/40K/WH/3S | 6,108 | 120-277V | 250W | 8.5"x14" | White | IP65 | Premium |
| 7623 | 50W | 5000K | LED-FXSAL50/50K/WH/3S | 6,161 | 120-277V | 250W | 8.5"x14" | White | IP65 | Premium |
| 7753 | 75W | 3000K | LED-FXSAL75/30K/WH/3S | 8,738 | 120-277V | 250-400W | 8.5"x14" | White | IP65 | - |
| 7631 | 100W | 5000K | LED-FXSAL100/50K/WH/3S | 12,181 | 120-277V | 400W | 8.5"x14" | White | IP65 | Premium |
| 9232 | 150W | 5000K | LED-FXSAL150/50K/WH/3S | 20,604 | 120-277V | 400-575W | 15"x22" | White | IP65 | Premium |
| 7747 | 180W | 3000K | LED-FXSAL180/30K/WH/3S | 22,191 | 120-277V | 400-575W | 15"x22" | White | IP65 | - |
| 7635 | 180W | 5000K | LED-FXSAL180/50K/WH/3S | 22,130 | 120-277V | 400-575W | 15"x22" | White | IP65 | Premium |
| 7749 | 240W | 3000K | LED-FXSAL240/30K/WH/3S | 29,794 | 120-277V | 750-1000W | 15"x22" | White | IP65 | - |
| 7638 | 240W | 4000K | LED-FXSAL240/40K/WH/3S | 28,828 | 120-277V | 750-1000W | 15"x22" | White | IP65 | Premium |
| 7751 | 360W | 3000K | LED-FXSAL360/30K/WH/3S | 44,796 | 120-277V | 1000-1500W | 15"x22" | White | IP65 | - |
| 7642 | 360W | 4000K | LED-FXSAL360/40K/WH/3S | 43,115 | 120-277V | 1000-1500W | 15"x22" | White | IP65 | Premium |
| 7643 | 360W | 5000K | LED-FXSAL360/50K/WH/3S | 43,907 | 120-277V | 1000-1500W | 15"x22" | White | IP65 | Premium |
| 7735 | 360W | 5000K | LED-FXSAL360/50K/WH/3S/480 | 43,980 | 277-480V | 1000-1500W | 15"x22" | White | IP65 | Premium |
| 7701 | 150W | 3000K | LED-FXSAL150/30K/BK/3S | 20,604 | 120-277V | 400-575W | 15"x22" | Black | IP65 | - |
| 9210 | 240W | 5000K | LED-FXSAL240/50K/BK/3S | 29,306 | 120-277V | 750-1000W | 15"x22" | Black | IP65 | Premium |
Downloads
Spec Sheet View Download
Installation View Download
7750 LED-FXSAL360/30K/DB/3S
7640 LED-FXSAL360/40K/DB/3S
7641 LED-FXSAL360/50K/DB/3S
7733 LED-FXSAL360/50K/DB/3S/480
7618 LED-FXSAL29/40K/WH/3S
7619 LED-FXSAL29/50K/WH/3S
7622 LED-FXSAL50/40K/WH/3S
7623 LED-FXSAL50/50K/WH/3S
7753 LED-FXSAL75/30K/WH/3S
7631 LED-FXSAL100/50K/WH/3S
9232 LED-FXSAL150/50K/WH/3S
7747 LED-FXSAL180/30K/WH/3S
7635 LED-FXSAL180/50K/WH/3S
7749 LED-FXSAL240/30K/WH/3S
7638 LED-FXSAL240/40K/WH/3S
7751 LED-FXSAL360/30K/WH/3S
7642 LED-FXSAL360/40K/WH/3S
7643 LED-FXSAL360/50K/WH/3S
7735 LED-FXSAL360/50K/WH/3S/480
7701 LED-FXSAL150/30K/BK/3S
9210 LED-FXSAL240/50K/BK/3S
Accessories
-
Slip Fitter
P10101 MT-SAL/SF/DB
P10209 MT-SAL/SF/BK
P10102 MT-SAL/SF/WH -
Swivel Bracket
P10103 MT-SAL/SB/DB
P10210 MT-SAL/SB/BK
P10104 MT-SAL/SB/WH -
6” Extruded Arm
P10105 MT-SAL/EA6/DB
P10211 MT-SAL/EA6/BK
P10106 MT-SAL/EA6/WH -
Round Pole Mounting Adaptor
P10119 MT-SAL/4PA/DB
P10120 MT-SAL/5PA/DB
P10121 MT-SAL/6PA/DB
P10122 MT-SAL/4PA/WH
P10123 MT-SAL/5PA/WH
P10124 MT-SAL/6PA/WH -
Yoke Mount (9-inch and 15-inch)
P10111 MT-SAL/YK9/DB
P10112 MT-SAL/YK9/WH
P10113 MT-SAL/YK15/DB
P10114 MT-SAL/YK15/WH -
Wall Mount
P10198 MT-SAL/WM/DB
P10199 MT-SAL/WM/WH -
Dual Pendant Box
P10107 MT-SAL/DPB/DB
P10108 MT-SAL/DPB/WH -
Photocell Sensor & Short Cap
K141030 REC3PLK/PHO
P10053 SEN-PHO-LK-MT/SRT -
PIR Motion/PhotoCell Sensor
K134115 PLT/SDB/SWC
K135115 PLT/SWH/SWD
K136115 PLT/LDB/SWC
K137115 PLT/LWH/SWD -
Receptacle
P10141 REC3PLK
P10142 REC7PLK -
Glare Shield
GSB-SAL-S/DB
P10206 GSB-SAL-S/WH
P10207 GSB-SAL-L/DB
P10208 GSB-SAL-L/WH
P10213 GSF-SAL-S/DB
P10214 GSF-SAL-S/WH
P10215 GSF-SAL-L/DB
P10216 GSF-SAL-L/WH -
Ballast
P10183 BALED-ESD-240S460DT
P10184 BALED-ESD-240S660DT -
Type 4 Lens
K238X2 LENS-SAL-180-IV
K238X3 LENS-SAL-240-IV
K237X4 LENS-SAL-360-IV -
Type 5 Lens
P101217 LENS-SAL-SMALL-V
P10128 LENS-SAL-LARGE-V/DB
P10131 LENS-SAL-LARGE-V/WH
