Area Lights Shoebox

SB

Area Lights Shoe box

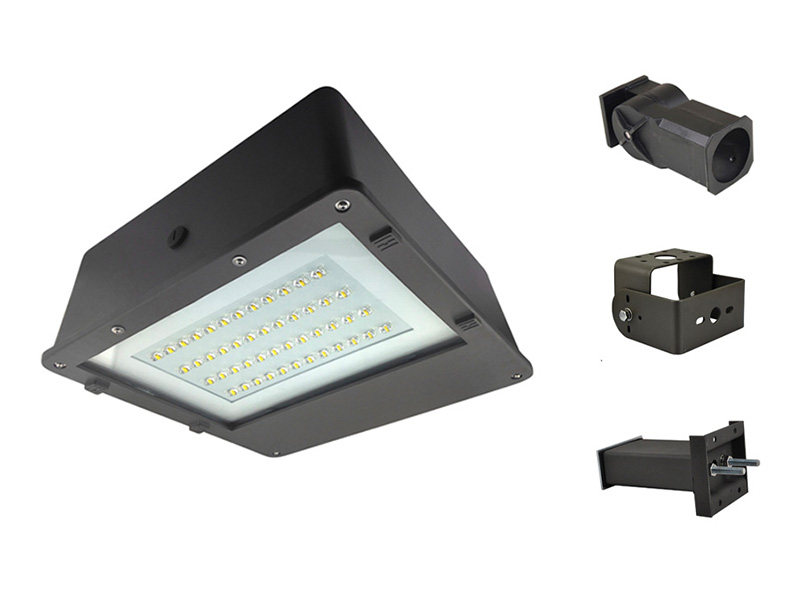

naturaLED® Compact Area Light is constructed with a durable, die-cast aluminum housing and excellent thermal design and is the perfect lighting solution for your parking lot, street, walkway, building flood up/down light and/or as a sign lighter.

SKU	Wattage	CCT	Product Description	Lumens	Voltage	Equivalent Wattage	Mounting	Color	Rating
7114	75W	4000K	LED-FXSB75/3S/40K/DB-EA6	5,898	120-277V	100-150W	EA6	Bronze	IP65
7118	110W	4000K	LED-FXSB110/3S/40K/DB-SF	8,574	120-277V	250-400W	SF	Bronze	IP65
7119	110W	4000K	LED-FXSB110/3S/40K/DB-SB	8,574	120-277V	250-400W	SB	Bronze	IP65
7169	110W	5000K	LED-FXSB110/3S/50K/WH-SB	8,574	120-277V	250-400W	EA6	White	IP65

Downloads

• Spec Sheet View Download

• Installation View Download

---

• 7114 LED-FXSB75/3S/40K/DB-EA6 Spec

• 7118 LED-FXSB110/3S/40K/DB-SF Spec IES

• 7119 LED-FXSB110/3S/40K/DB-SB Spec IES

• 7169 LED-FXSB110/3S/50K/WH-EA6 Spec IES

• 9518 FXCAL300/840/BZ/3S/480 Spec
