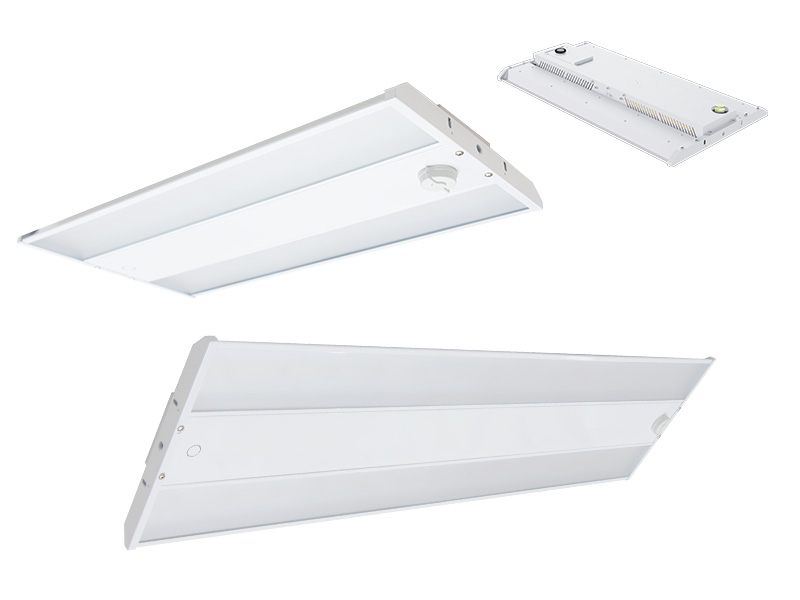

Linear High Bay + Z10 Receptacle


HBL

Linear High Bay + Z10 Receptacle

naturaLED® offers the perfect solution for your lighting needs with our Linear High/Low Bay. This new design allows us to optimize all the beneficial characteristics of LED light in a high-performance fixture that will endure many years of service. These Linear High Bays are extremely durable, yet lightweight, with excellent thermal design. This product is a hybrid crossover, which makes it an excellent fixture for new construction and/or as a replacement solution for your existing High/Low Bays needs. The preinstalled Z10 Receptacle allows easy plug-and-play control upgrades during installation or at a later time.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Certification DLC
9687 90W
120W
150W		 CCT3
(30/40/50K)		 HBL/150S/22FR/8C3-Z10 12,150
16,200
20,250		 120-277V 400-575W 12"x22" White Damp
Location		 Premium
9688 150W
240W
300W		 CCT3
(30/40/50K)		 HBL/300S/44FR/8C3-Z10 20,250
32,400
40,500		 120-277V 575-1000W 12"x44" White Damp
Location		 Premium
9703 90W
120W
150W		 CCT3
(30/40/50K)		 HBL/150S/22FR/8C3/480-Z10 12,150
16,200
20,250		 277-480V 400-575W 12"x22" White Damp
Location		 Premium
9704 150W
240W
300W		 CCT3
(30/40/50K)		 HBL/300S/44FR/8C3/480-Z10 20,250
32,400
40,500		 277-480V 575-1000W 12"x44" White Damp
Location		 Premium
9689 90W
120W
150W		 CCT3
(30/40/50K)		 HBL/150S/22FR/8C3/347-Z10 12,150
16,200
20,250		 120-347V 400-575W 12"x22" White Damp
Location		 Premium
9690 150W
240W
300W		 CCT3
(30/40/50K)		 HBL/300S/44FR/8C3/347-Z10 20,250
32,400
40,500		 120-347V 575-1000W 12"x44" White Damp
Location		 Premium
