Round High/Low Bays + Z10 Receptacle CCT2


HBR

Round High/Low Bays + Z10 Receptacle CCT2

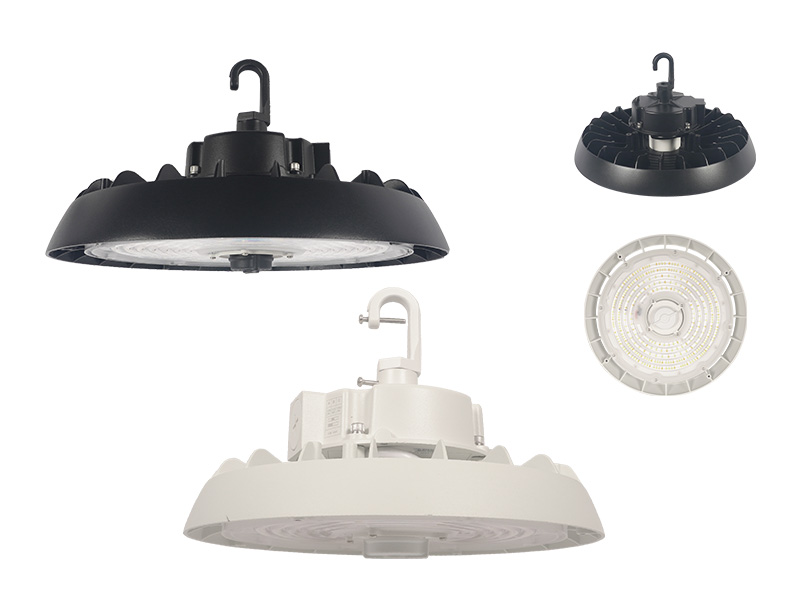

naturaLED® Round Highbay comes with an IP66 rating making it water and dust resistant. These fixtures are uniquely designed for multiple applications such as, warehouses, retail stores, gymnasiums, factories and more. Our round highbays are compact, lightweight and have a pre-installed hook design so perfect for replacing traditional HID up to 1000 watt or linear 4 & 6 tube fluorescent highbay fixtures. We have several accessory options: PIR Motion Sensor, Polycarbonate Reflector,& Emergency Battery Back up Inverter. The preinstalled Z10 Receptacle allows easy plug-and-play control upgrades during installation or at a later time

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Rating DLC
9683 100W
125W
150W		 CCT2
(40/50K)		 HBR10/150S/110/8C2/BK-Z10 14,000
18,513
20,830		 120-277V 250-575W 10" Black IP66 Premium
9684 100W
125W
150W		 CCT2
(40/50K)		 HBR10/150S/110/8C2/WH-Z10 14,000
18,513
20,830		 120-277V 250-575W 10" White IP66 Premium
9685 150W
200W
240W		 CCT2
(40/50K)		 HBR13/240S/110/8C2/BK-Z10 21,000
28,742
33,987		 120-277V 575-1000W 13" Black IP66 Premium
9705 150W
200W
240W		 CCT2
(40/50K)		 HBR13/240S/110/8C2/WH-Z10 21,000
28,742
33,987		 120-277V 575-1000W 13" White IP66 Premium
9686 100W
150W
200W		 CCT2
(40/50K)		 HBR12/200S/110/8C2/BK/347-Z10 14,000
22,202
27,543		 120-347V 575-1000W 12" Black IP66 Premium
