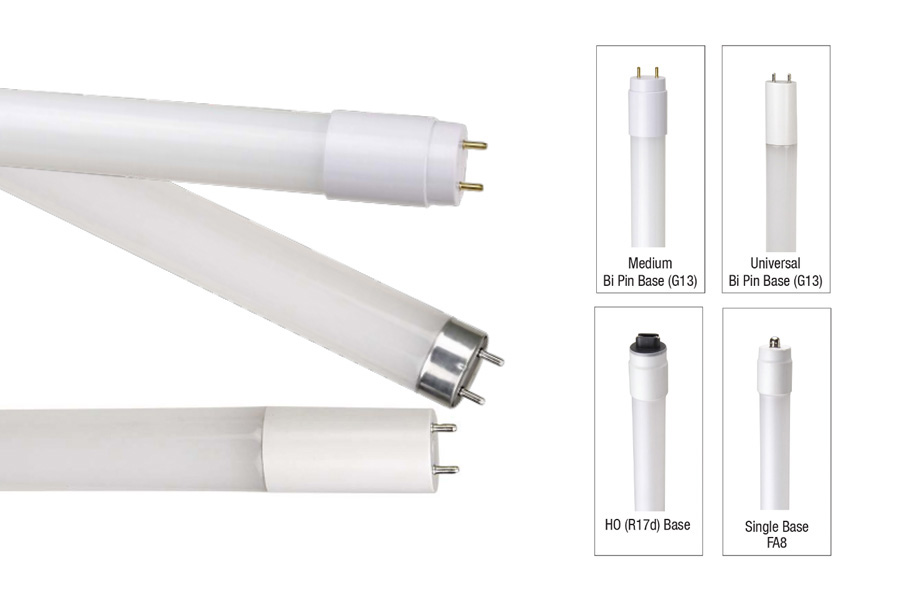

T5/T8 Tube Integrated Lamps

T5/T8

T5/T8 Tube Integrated Lamps

naturaLED® LED Integrated DriverT5/T8Tubes are direct-wire installation to replace FluorescentTubes. Designed to be noise-free and non-flickering, our LED Tubes selections from 9W to 43W can replace 2ft, 3ft, 4ft, 8ft FluorescentTubes. DLC qualified LED tubes are designed to provide right amount of light levels while utilizing a dedicated internal driver. Our integrated tubes can provide up to 60% in energy savings compare to 4ft 32-watt fluorescent lamps. With excellent color consistency, and Glass Construction, our integrated driver design brings you the best retrofit solution.

SKU	Wattage	CCT	Product Description	Lumens	Voltage	Equivalent Wattage	Length	Base	Rating	DLC
5943	25W	5000K	LED25T5/FR35/850	3,500	120-277V	54W	4'/48inch	G5	Damp Location	Standard
4556	9W	4000K	LED9T8/24FR11/840/UNV	1,150	120-277V	17W	2'/24inch	Bi-Pin	Damp Location	Standard
4557	9W	5000K	LED9T8/24FR11/850/UNV	1,150	120-277V	17W	2'/24inch	Bi-Pin	Damp Location	Standard
5778	10W	4000K	LED10T8/24FR10/840	1,109	120-277V	17W	2'/24inch	Bi-Pin	Damp Location	-
4569	12W	4000K	LED12T8/36FR14/840/UNV	1,450	120-277V	25W	3'/36inch	Bi-Pin	Damp Location	Standard
4570	12W	5000K	LED12T8/36FR14/850/UNV	1,450	120-277V	25W	3'/36inch	Bi-Pin	Damp Location	Standard
4603	10.5W	4000K	LED10.5T8/FR17/840/UNV	1,700	120-277V	32W	4'/48inch	Bi-Pin	Damp Location	Standard
4604	10.5W	5000K	LED10.5T8/FR17/850/UNV	1,700	120-277V	32W	4'/48inch	Bi-Pin	Damp Location	Standard
4538	14W	4000K	LED14T8/FR18/840/UNV	1,800	120-277V	32W	4'/48inch	Bi-Pin	Damp Location	Standard
4539	14W	5000K	LED14T8/FR18/850/UNV	1,800	120-277V	32W	4'/48inch	Bi-Pin	Damp Location	Standard
4599	40W	4000K	LED40T8/96FR55/840	5,500	120-277V	110W	8'/96inch	Single	Damp Location	Standard
4600	40W	5000K	LED40T8/96FR55/850	5,500	120-277V	110W	8'/96inch	Single	Damp Location	Standard
4601	40W	4000K	LED40T8/96FR55/R17D/840	5,500	120-277V	110W	8'/96inch	R17d	Damp Location	-
4602	40W	5000K	LED40T8/96FR55/R17D/850	5,500	120-277V	110W	8'/96inch	R17d	Damp Location	-
5960	43W	4000K	LED43T8/96FR55/R17D/840	5,500	120-277V	110W	8'/96inch	R17d	Damp Location	-
5955	15W	4000K	LED15T8/FR18/840G1	1,800	120-277V	32W	4'/48inch	Bi-Pin	Damp Location	Standard
5956	15W	5000K	LED15T8/FR18/850G1	1,800	120-277V	32W	4'/48inch	Bi-Pin	Damp Location	Standard
4635	24W 32W 40W	CCT5 (27/30/35/40/50K)	LED40T8SW/96FR55/8CCT5	3,300 4,200 5,500	120-277V	110W	8'/96inch	Single/R17d	Damp Location	Standard

Downloads

• Spec Sheet View Download

• Installation:#5943 View Download

• Installation:T8 UNV View Download

• Installation:T8 FA8 View Download

• Installation:T8 R17D View Download

---

• 5943 LED25T5/FR35/850 Spec IES

• 4556 LED9T8/24FR11/840/UNV Spec IES

• 4557 LED9T8/24FR11/850/UNV Spec IES

• 5778 LED10T8/24FR10/840 Spec

• 4569 LED12T8/36FR14/840/UNV Spec

• 4570 LED12T8/36FR14/850/UNV Spec

• 4603 LED10.5T8/FR17/840/UNV Spec

• 4604 LED10.5T8/FR17/850/UNV Spec

• 4538 LED14T8/FR18/840/UNV Spec IES

• 4539 LED14T8/FR18/850/UNV Spec IES

• 4599 LED40T8/96FR55/840 Spec

• 4600 LED40T8/96FR55/850 Spec

• 4601 LED40T8/96FR55/R17D/840 Spec

• 4602 LED40T8/96FR55/R17D/850 Spec

• 5960 LED43T8/96FR55/R17D/840 Spec

• 5955 LED15T8/FR18/840G1 Spec IES

• 5956 LED15T8/FR18/850G1 Spec IES

• 4635 LED40T8SW/96FR55/8CCT5
