Retrofit Commercial Strip Light
RSL
Retrofit Commercial Strip Light

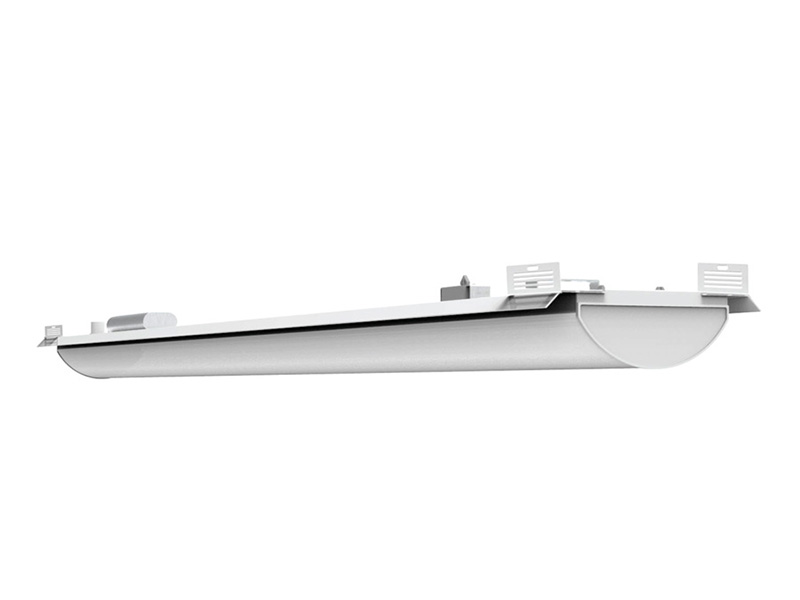

naturaLED® Retrofit Strip Light is an energy-saving, cost-effective, and easy to install replacement. This fixture mounts onto virtually any existing fluorescent channel; replacing existing 4’/ 8’ fluorescent strips and industrial fixtures to LED. Designed with round frosted acrylic lens and steel housing, improves an architectural look for retrofit replacement. Our RSL is a permanent solution that is suitable for applications including retail, warehouse, storage, and much more.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Rating | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 9346 | 25W | 4000K | LED-FXRSL25/48FR/840/MV | 3,944 | 120-277V | 2 x 32W T8 | 5.5"x48" | White | Damp Location |
Standard |
| 9347 | 25W | 5000K | LED-FXRSL25/48FR/850/MV | 3,977 | 120-277V | 2 x 32W T8 | 5.5"x48" | White | Damp Location |
Standard |
| 9348 | 55W | 4000K | LED-FXRSL56/96FR/840/MV | 8,425 | 120-277V | 5 x 32W T8 | 5.5"x96" | White | Damp Location |
Standard |
| 9349 | 55W | 5000K | LED-FXRSL56/96FR/850/MV | 8,464 | 120-277V | 5 x 32W T8 | 5.5"x96" | White | Damp Location |
Standard |
Downloads
Spec Sheet View Download
Installation:#9346 ⒃ View Download
Installation:#9348 ⒅ View Download
9346 LED-FXRSL25/48FR/840/MV
9347 LED-FXRSL25/48FR/850/MV
9348 LED-FXRSL56/96FR/840/MV
9349 LED-FXRSL56/96FR/850/MV
Accessories
-
Emergency Driver
7334 BAEM15-48BC/MV-A(#9348,9349)
7336 BAEM4-60BC/MV-A(#9346,9347) -
Motion Sensor
P10234 SEN-MC605V-D
-
Step Down Driver
P10429 BA-MTM00706227C
