Utility Wrap
UWS
Utility Wrap

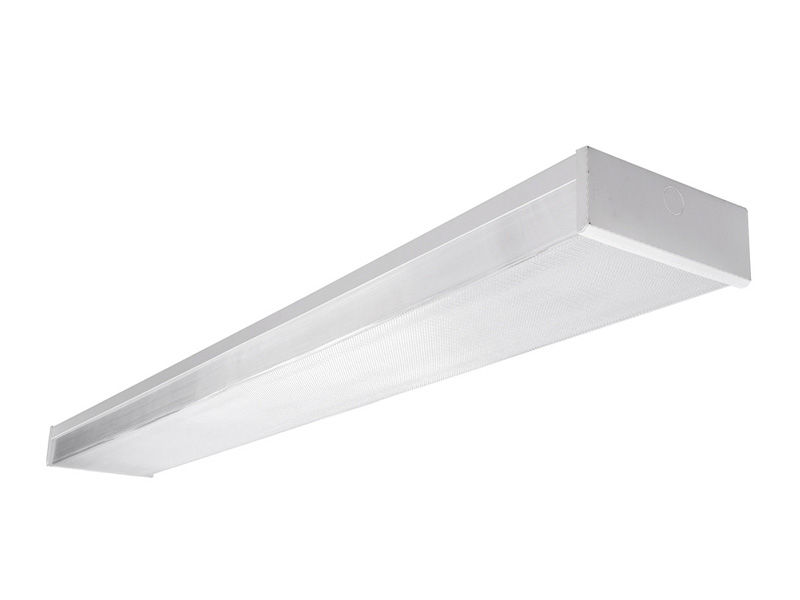

naturaLED® Utility Wrap (UWS) now offers the perfect solution for your lighting needs. The Utility Wrap fixtures are designed for saving energy and easy installation. Available in 27W in two color temperature of 4000K and 5000K delivering up to 3,510 lumens with excellent and consistent color. Our Utility Wrap features a full wrap-around UV coated PC plastic prismatic lens and is 48 inches long; designed for junction box installation and works great in parking garages, stairwells, offices, hallways, industrial, commercial and residential, ceiling or wall mounted. This fixture is versatile and efficient
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Rating | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 9538 | 27W | 4000K | FXUWS27/48CL/840 | 3,510 | 120-277V | 4 x 32W T8 | 7"x48" | White | Damp Location |
Premium |
| 9539 | 27W | 5000K | FXUWS27/48CL/850 | 3,510 | 120-277V | 4 x 32W T8 | 7"x48" | White | Damp Location |
Premium |
| 9540 | 27W | 4000K | FXUWS27/48CL/840/347 | 3,510 | 120-347V | 4 x 32W T8 | 7"x48" | White | Damp Location |
Premium |
| 9541 | 27W | 5000K | FXUWS27/48CL/850/347 | 3,510 | 120-347V | 4 x 32W T8 | 7"x48" | White | Damp Location |
Premium |
Downloads
Spec Sheet View Download
Installation View Download
9538 FXUWS27/48CL/840
9539 FXUWS27/48CL/850
9540 FXUWS27/48CL/840/347
9541 FXUWS27/48CL/850/347
Accessories
-
Emergency Driver Kit with Wireway Cover
K7336197 FXUWS-BAEM-MT
-
Emergency Driver only
7336 BAEM4-60BC/MV-A
-
Motion/Daylight Sensor Kit
K234197 FXUWS27-MC605VD-PLT
-
Motion/Daylight Sensor only
P10234 SEN-MC605V-D
-
Lens
P10407 LENS-UWS27
-
Wire Guard
P10249 WG-UWS/48/WH
-
Wireway Cover
P10197 PLT-UWS/4FT/WH
-
Surge Protector
P10389 SPD-L-10KV-277
P10390 SPD-L-20KV-277
P10391 SPD-L-20KV-480
