Vapor Tights ETL
VTL
Vapor Tights ETL

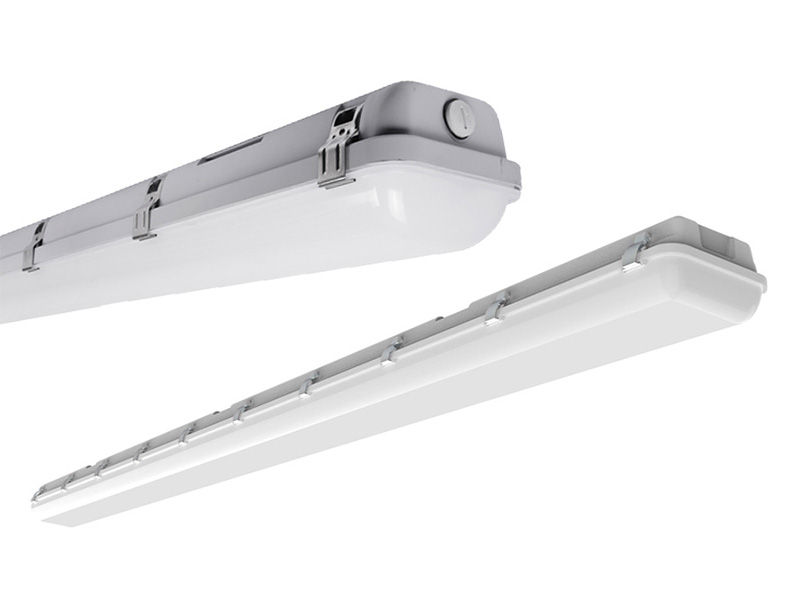

naturaLED® linear vapor tight is housed in polycarbonate silicon perimeter gasket with brackets for mounting. Engineered for powerful lighting, the IP65-rated LED Vapor Tight Linear Fixtures are designed to replace fluorescent strip fixtures and can be used in parking garage, corporate campus, education facility, storage facility, car washes, tunnels and stairwell lighting. Using up to 65% less energy and operating for up to 50,000 average life hours.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Beam Angle | Color | Rating | DLC |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9274 | 24W | 5000K | LED-FXVTL25/24FR/850 | 3,431 | 120-277V | 3 x 17W T8 | 4.80"x24" | 110° | Gray | IP65 | - |
| 9276 | 25W | 5000K | LED-FXVTL25/48FR/850 | 3,595 | 120-277V | 2 x 32W T8 | 4.80"x48" | 110° | Gray | IP65 | Standard |
| 9281 | 65W | 4000K | LED-FXVTL65/48FR/840 | 9,097 | 120-277V | 5 x 32W T8 | 4.80"x48" | 110° | Gray | IP65 | - |
| 9283 | 90W | 4000K | LED-FXVTL90/96FR/840 | 12,411 | 120-277V | 6 x 32W T8 | 6.30"x96" | 110° | Gray | IP65 | - |
| 9284 | 90W | 5000K | LED-FXVTL90/96FR/850 | 12,509 | 120-277V | 6 x 32W T8 | 6.30"x96" | 110° | Gray | IP65 | - |
| 9342 | 25W | 5000K | LED-FXVTL25/48FR/850-SEN (Sensor Included) |
3,595 | 120-277V | 2 x 32W T8 | 4.80"x48" | 110° | Gray | IP65 | Standard |
| 9343 | 38W | 5000K | LED-FXVTL40/48FR/850-SEN (Sensor Included) |
5,444 | 120-277V | 3 x 32W T8 | 4.80"x48" | 110° | Gray | IP65 | - |
| 9269 | 25W | 4000K | LED-FXVTL25/48CL/PG/840 | 3,106 | 120-277V | 2 x 32W T8 | 4.80"x48" | 152° | Gray | IP65 | Premium |
| 9270 | 25W | 5000K | LED-FXVTL25/48CL/PG/850 | 3,146 | 120-277V | 2 x 32W T8 | 4.80"x48" | 152° | Gray | IP65 | Premium |
| 9271 | 50W | 4000K | LED-FXVTL52/48CL/PG/840 | 6,266 | 120-277V | 4 x 32W T8 | 4.80"x48" | 152° | Gray | IP65 | - |
| 9272 | 50W | 5000K | LED-FXVTL52/48CL/PG/850 | 6,335 | 120-277V | 4 x 32W T8 | 4.80"x48" | 152° | Gray | IP65 | - |
Downloads
Spec Sheet View Download
Installation View Download
9274 LED-FXVTL25/24FR/850
9276 LED-FXVTL25/48FR/850
9281 LED-FXVTL65/48FR/840
9283 LED-FXVTL90/96FR/840
9284 LED-FXVTL90/96FR/850
9342 LED-FXVTL25/48FR/850-SEN
9343 LED-FXVTL40/48FR/850-SEN
9269 LED-FXVTL25/48CL/PG/840
9270 LED-FXVTL25/48CL/PG/850
9271 LED-FXVTL52/48CL/PG/840
9272 LED-FXVTL52/48CL/PG/850
Accessories
-
Emergency Driver Kit
K7334300 FXVTL-BAEM-MT
7336 BAEM4-60BC/MV-A(#9342,9343) -
Microwave Motion Sensor
K234301 FXVTL-MC605VD-MT
