Edge-Lit Flat Panels G1 & CCT3
PNL
Edge-Lit Flat Panels G1 & CCT3

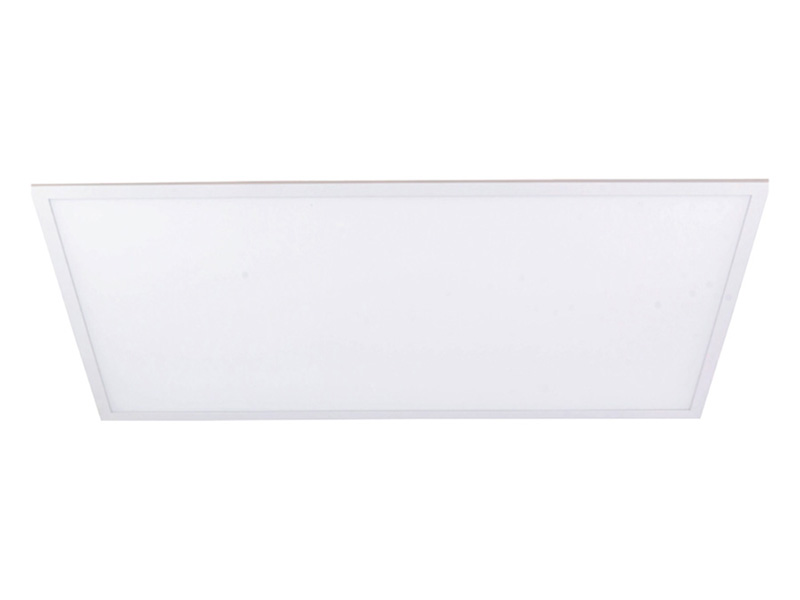

naturaLED® Flat Panels G1 have an integrated LED technology with a low profile design. The lightweight LED provide a smooth and uniform light distribution from edge-to-edge for an even and consistent color design. Perfect solution for your interior lighting needs for offices, schools, and meeting rooms. The Flat Panel are easily installed with maximum energy savings; comes in standard configurations of 1’x4’, 2’x2’ for mounting in T-Bar/Grid ceilings or optional surface mount box kit.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Certification | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 9461 | 50W | CCT3 (35/40/50K) |
FXPNL50/2x4/8CCT3 | 5,900 | 120-277V | 120-130W | 2'x4' | White | Damp Location |
Standard |
| 7675 | 41W | 4000K | LED-FXPNL40/1X4/840G1 | 4,397 | 120-277V | 90-100W | 1'x4' | White | Damp Location |
- |
| 7720 | 40W | 3500K | LED-FXPNL40/2X2/835G1 | 4,381 | 120-277V | 90-100W | 2'x2' | White | Damp Location |
- |
| 7685 | 40W | 5000K | LED-FXPNL40/2X2/850G1 | 4,489 | 120-277V | 90-100W | 2'x2' | White | Damp Location |
- |
Downloads
Spec Sheet View Download
Installation:#9461 View Download
9461 FXPNL50/2x4/8CCT3
7675 LED-FXPNL40/1X4/840G1
7720 LED-FXPNL40/2X2/835G1
7685 LED-FXPNL40/2X2/850G1
Accessories
-
Emergency Driver
7338 BAEM8L-60BC/347-A(2'x2')
-
Surface Mount Kit
P10097 MT-2X2BOXG1(2'x2')
-
Earthquake Hooks
P10100 MT-PNL-HOOK-6PCS
