Center Basket Troffers G1 CCT3

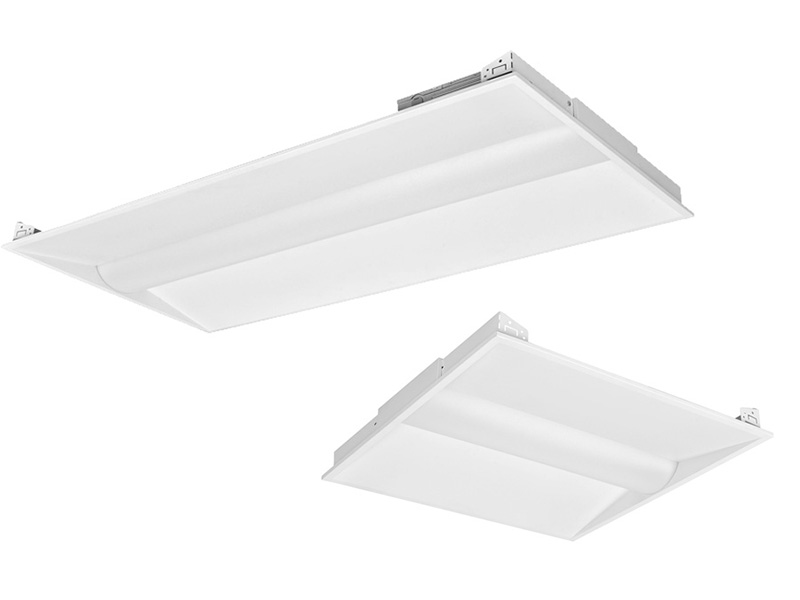

naturaLED® Troffer is the perfect solution for your interior lighting needs. This DLC Standard Troffer is available in 2’x2’ and 2’x4’ dimensions for TBar/Grid ceilings. Available options include Emergency LED Driver and Microwave Motion Sensor. This is a lightweight fixture with a bug-free lens design and produces up to 5,850 lumens with excellent light distribution and color consistency.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Certification | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 9586 | 20W 30W 36W |
CCT3 (35/40/50K) |
FXTF36SW/2X2/8CCT3G1 | 2,640 3,810 4,572 |
120-277V | 60-100W | 2'x2' | White | Damp Location |
Standard |
| 9587 | 30W 40W 45W |
CCT3 (35/40/50K) |
FXTF45SW/2X4/8CCT3G1 | 4,050 5,200 5,850 |
120-277V | 90-130W | 2'x4' | White | Damp Location |
Standard |
Downloads
Spec Sheet View Download
Installation View Download
9586 FXTF36SW/2X2/8CCT3G1
9587 FXTF45SW/2X4/8CCT3G1
Accessories
-
Emergency Driver Kit
K7336593 FXTFSW-BAEM-MT-G1
-
Microwave Motion Sensor Kit
K234593 FXTFSW/MC605-MT-G1
-
Flange Mounting Kit
P10228 MT-2x2FMBOX (2'x2')
P10229 MT-2x4FMBOX (2'x4') -
Air Craft Cable
P10147 MT-ACC-4FT (4ft)
P10144 MT-ACC-10FT (10ft) -
Ceiling Mount Kit (3.0” Height)
P10417 MT-2X2BOX-3.0in (2'x2')
P10418 MT-2X4BOX-3.0in (2'x4') -
Ceiling Mount Kit (4.5" Height)
P10335 MT-2X2BOX-4.5in (2'x2')
P10336 MT-2X4BOX-4.5in (2'x4') -
Bluetooth Adapter
P10342 CTL-AVI-IFAC-5A-1CH
P10409 CTL-AVI-LVFA-1CH-12-2VDC -
Bluetooth Wall Switch
P10344 CTL-2402BAT (Battery Versiion)
P10345 CTL-2401AC (Wall Switch) -
Power Supply
P10347 CTL-AVI-PS-277-12-250
-
Bluetooth Sensor
P10373 CTL-AVI-SEN-ICM-24-BLE
-
Surge Protector
P10389 SPD-L-10KV-277
P10390 SPD-L-20KV-277
