Center Basket Troffers CCT3


TF

Center Basket Troffers CCT3

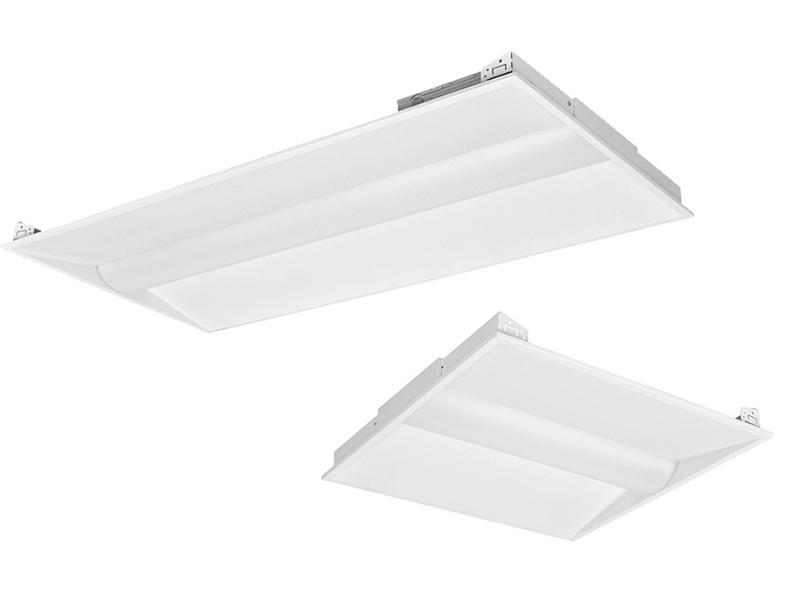

naturaLED® Troffer is the perfect solution for your interior lighting needs. This DLC Standard Troffer is available in 2’x2’ and 2’x4’ dimensions for TBar/Grid ceilings. Available options include Emergency LED Driver and Microwave Motion Sensor. This is a lightweight fixture with a bug-free lens design and produces up to 6,003 lumens with excellent light distribution and color consistency.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Certification DLC
9559 20W
30W
36W		 CCT3
(35/40/50K)		 FXTF36SW/2x2/8CCT3 2,600
4,100
4,576		 120-277V 60-100W 2'x2' White Damp
Location		 Standard
9560 30W
40W
45W		 CCT3
(35/40/50K)		 FXTF45SW/2x4/8CCT3 3,900
5,700
6,003		 120-277V 90-130W 2'x4' White Damp
Location		 Standard
9595 20W
30W
36W		 CCT3
(35/40/50K)		 FXTF36SW/2x2/8CCT3/347 2,600
4,100
4,576		 120-347V 60-100W 2'x2' White Damp
Location		 Standard
9596 30W
40W
45W		 CCT3
(35/40/50K)		 FXTF45SW/2x4/8CCT3/347 3,900
5,700
6,003		 120-347V 90-130W 2'x4' White Damp
Location		 Standard
