Cutoff Wall Pack CCT3


CWP

Cutoff Wall Pack CCT3

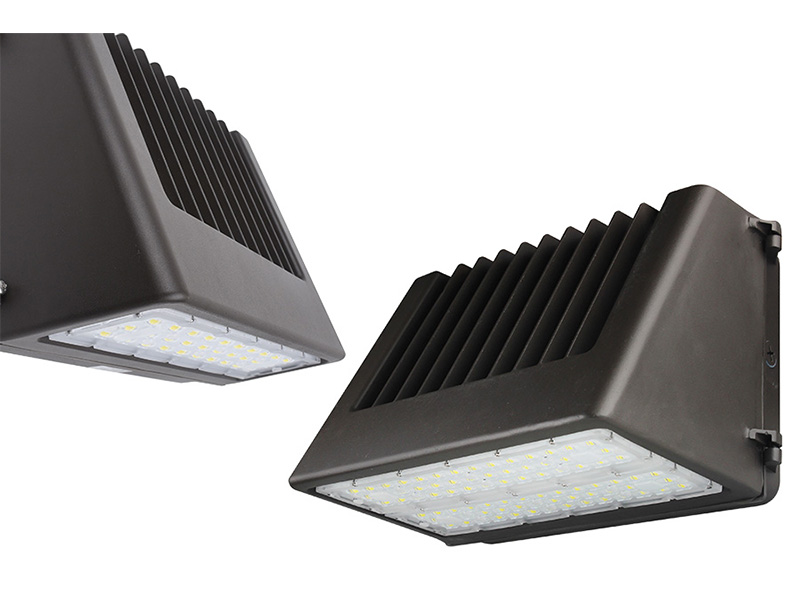

naturaLED® cut-off wallpack comes in rugged cast-aluminum housing with excellent thermal design. Our CWP product offers a popular but classic appearanace with sleek angle design. Delivering up to 16,525 lumens with different wattages options: 40W, 60W, 80W, 120W,and 120W selectable wattages and color temperature. Replacing up to 750-watt metal halide luminaires and provides energy saving up to 72%. Our CWP is ideal for outdoor applications such as car ports, loading areas, driveways, parking areas, and pathways. Suggested for wall mounting minimum above four feet from ground.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Color DLC
9553 28W
40W
60W		 3CCT
(30/40/50K)		 FXCWP60SW/CCT3/BZ-PHO 3,780
5,400
8,176		 120-277V 100-400W Bronze Premium
9554 80W
100W
126W		 3CCT
(30/40/50K)		 FXCWP120SW/CCT3/BZ-PHO 10,388
12,985
16,464		 120-277V 575-750W Bronze Premium
9319 39W 4000K LED-FXCWP40/40K/BZ 5,288 120-277V 250W Bronze Premium
9208 63W 4000K LED-FXCWP60/40K/BZ 8,347 120-277V 400W Bronze Premium
9209 63W 5000K LED-FXCWP60/50K/BZ 8,425 120-277V 400W Bronze Premium
9443 83W 4000K LED-FXCWP80/40K/BZ 11,048 120-277V 400-575W Bronze Premium
9444 83W 5000K LED-FXCWP80/50K/BZ 11,193 120-277V 400-575W Bronze Premium
9445 121W 4000K LED-FXCWP120/40K/BZ 16,525 120-277V 575-750W Bronze Premium
