Slim Wall Pack CCT3


SWP

Slim Wall Pack CCT3

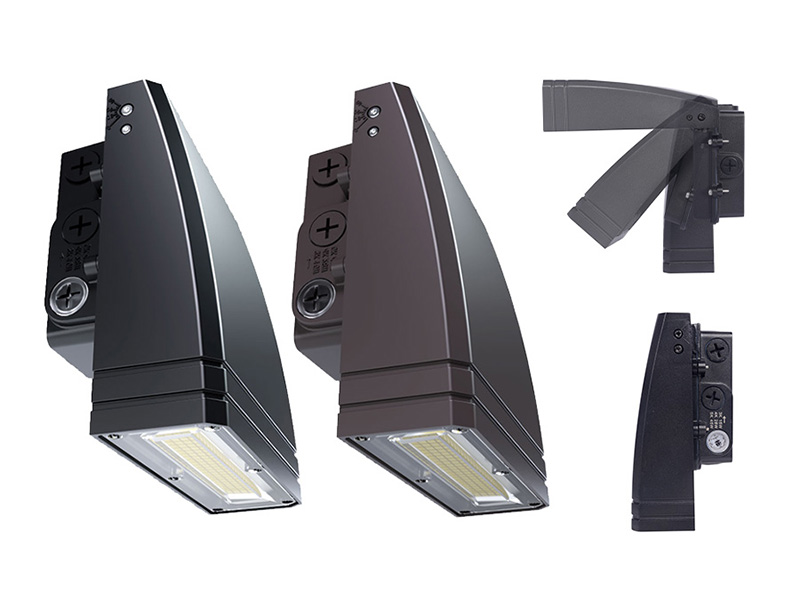

naturaLED® slim, low-profile cutoff wall pack with the smooth contemporary design. Well-engineered, high-quality die-cast aluminum, delivering bright, crisp light. The excellent thermal design ensures our SWP’s performance over rated life. Installation is made simple and easy with an adjustable angle and hinged junction box. Our 45-Watt Slim Wall Packs are available with wattage and color temperature selectable of Black and Bronze. Optional ¾” knuckle-mount, adjustable swivel bracket or slip fitter provides you the flexibility for your application. SWP is ideal for landscape, wall/surface, low-level pathway, apartment buildings, schools and multi-use facilities.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage
Color DLC
9589 15W
28W
45W
3CCT
(30/40/50K)
FXSWP45SW/8CCT3/BZ/347-PHO 1,800
3,360
5,400
120-347V 100-250W Bronze Premium
9590 15W
28W
45W
3CCT
(30/40/50K)
FXSWP45SW/8CCT3/BK/347-PHO 1,800
3,360
5,400
120-347V 100-250W Black Premium

Downloads

Accessories

  • Knuckle Mount

    P10254 MT-KNC-SWP/BZ(Bronze)
    P10006 MT-KNC-SWP/BK(Black)

  • Swivel Bracket

    P10253 MT-SB-SWP/BZ(Bronze)
    P10005 MT-SB-SWP/BK(Black)

  • Slip Fitter

    P10255 MT-SF-SWP/BZ(Bronze)
    P10007 MT-SF-SWP/BK(Black)
