Compact Area Light Z10


CAL

Compact Area Light Z10

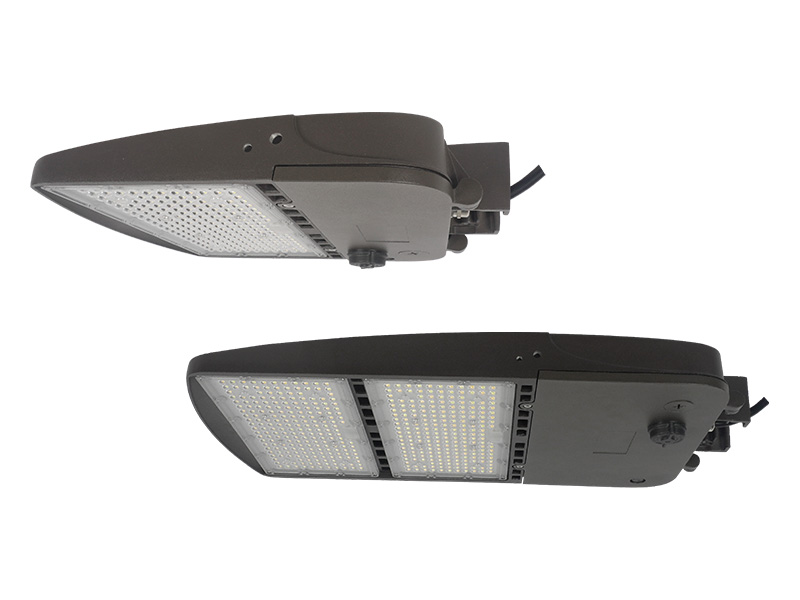

naturaLED® Compact Area Light is constructed with a durable, die-cast aluminum housing and excellent thermal design and is the perfect lighting solution for your parking lot, street, walkway, building flood up/down light and/or as a sign lighter. It provides uniform, consistent color with a wide range of wattage selections to replace up to 1500W HID fixtures. Our fixtures are DLC Premium certified, IK10 and IP65 rated with three types of mounting options available: Pole Mount, Slip Fitter, and Yoke Mount. Easy Z10 Remote-Ready with photocell sensors, receptacle, and IR motion sensor are available as optional accessories to address your needs.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Rating DLC
9530 70W
100W
150W		 CCT3
(30/40/50K)		 CAL/150S/T3/C3/BZ-Z10 9,100
13,527
19,842		 120-277V 400-575W 12.4"x13.14" Bronze IP65 Premium
9531 200W
240W
300W		 CCT3
(30/40/50K)		 CAL/300S/T3/C3/BZ-Z10 26,000
32,491
40,397		 120-277V 1000-1500W 12.4"x22.72" Bronze IP65 Premium
9604 70W
100W
150W		 CCT3
(30/40/50K)		 CAL/150S/T3/C3/BZ/347-Z10 9,800
14,000
21,000		 120-347V 400-575W 12.4"x13.14" Bronze IP65 Premium
9713 200W
240W
300W		 CCT3
(30/40/50K)		 CAL/300S/T3/C3/BZ/347-Z10 28,000
33,600
42,000		 120-347V 1000-1500W 12.4"x22.72" Bronze IP65 Premium
