Slim Area Light Single, Selectable Wattage &CCT3


SAL

Slim Area Light Single Selectable Wattage &CCT3

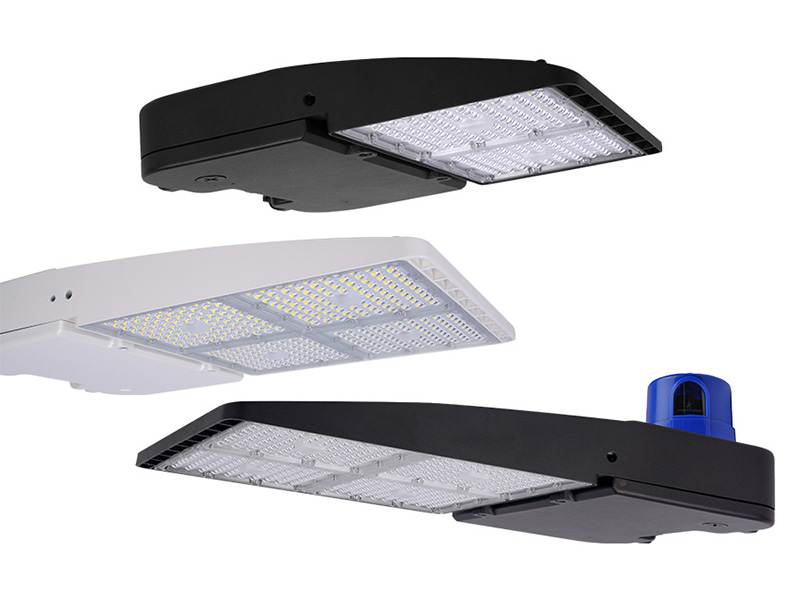

naturaLED® Slim Area Light is constructed with a durable, die-cast aluminum housing and excellent thermal design and is the perfect lighting solution for your parking lot, street, walkway, building flood up/down light and/or as a sign lighter. It provides uniform, consistent color with a wide range of wattage selections to replace from 100W to 1500W HID fixtures. Our fixtures are DLC Premium certified and IP66 rated with four types of mounting options available: Pole Mount, Slip Fitter, Wall Mount, and Yoke Mount. Compatible integrated autonomous and photocell motion sensors are available as options to address your energy savings. Energy savings can be as much as 85% while eliminating maintenance costs in labor and lamp and ballast replacement.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Rating DLC
7647 90W
120W
150W		 3000K FXSAL150SW/830/BZ/T3 12,649
16,800
21,163		 120-277V 400-575W 12.1"x14.2" Bronze IP66 Premium
9610 160W
190W
240W		 4000K FXSAL240SW/840/BZ/T3 22,400
26,600
34,829		 120-277V 400-1000W 12.1"x21.65" Bronze IP66 Premium
9611 160W
190W
240W		 5000K FXSAL240SW/850/BZ/T3 22,500
30,000
34,680		 120-277V 400-1000W 12.1"x21.65" Bronze IP66 Premium
9627 160W
190W
240W		 4000K FXSAL240SW/840/WH/T3 22,400
26,600
34,829		 120-277V 400-1000W 12.1"x21.65" White IP66 Premium
9628 160W
190W
240W		 5000K FXSAL240SW/850/WH/T3 22,500
30,000
34,680		 120-277V 400-1000W 12.1"x21.65" White IP66 Premium
7665 160W
190W
240W		 4000K FXSAL240SW/840/BK/T3 22,400
26,600
34,829		 120-277V 400-1000W 12.1"x21.65" Black IP66 Premium
7666 160W
190W
240W		 5000K FXSAL240SW/850/BK/T3 22,500
30,000
34,680		 120-277V 400-1000W 12.1"x21.65" Black IP66 Premium
9657 25W CCT3
(30/40/50K)		 FXSAL25/8CCT3/BZ/T3 3,500 120-277V 75W 12.1"x14.2" Bronze IP66 Premium
9658 42W CCT3
(30/40/50K)		 FXSAL42/8CCT3/BZ/T3 6,090 120-277V 150W 12.1"x14.2" Bronze IP66 Premium
9659 50W CCT3
(30/40/50K)		 FXSAL50/8CCT3/BZ/T3 7,000 120-277V 250W 12.1"x14.2" Bronze IP66 Premium
9662 25W CCT3
(30/40/50K)		 FXSAL25/8CCT3/BZ/T3/480 3,500 277-480V 75W 12.1"x14.2" Bronze IP66 Premium
9663 42W CCT3
(30/40/50K)		 FXSAL42/8CCT3/BZ/T3/480 6,090 277-480V 150W 12.1"x14.2" Bronze IP66 Premium
9664 50W CCT3
(30/40/50K)		 FXSAL50/8CCT3/BZ/T3/480 7,000 277-480V 250W 12.1"x14.2" Bronze IP66 Premium
9605 25W
50W
75W		 CCT3
(30/40/50K)		 FXSAL75SW/8CCT3/BZ/T3 3,500
7,000
10,555		 120-277V 100-400W 12.1"x14.2" Bronze IP66 Premium
9649 25W
50W
75W		 CCT3
(30/40/50K)		 FXSAL75SW/8CCT3/BK/T3 3,500
7,000
10,555		 120-277V 100-400W 12.1"x14.2" Black IP66 Premium
9622 25W
50W
75W		 CCT3
(30/40/50K)		 FXSAL75SW/8CCT3/WH/T3 3,500
7,000
10,555		 120-277V 100-400W 12.1"x14.2" White IP66 Premium
9647 25W
50W
75W		 CCT3
(30/40/50K)		 FXSAL75SW/8CCT3/BZ/T3/480 3,500
7,000
11,224		 277-480V 100-400W 12.1"x14.2" Bronze IP66 Premium
7656 25W
50W
75W		 CCT3
(30/40/50K)		 FXSAL75SW/8CCT3/WH/T3/480 3,500
7,000
11,224		 277-480V 100-400W 12.1"x14.2" White IP66 Premium
9606 100W 4000K FXSAL100/840/BZ/T3 14,633 120-277V 400W 12.1"x14.2" Bronze IP66 Premium
9607 100W 5000K FXSAL100/850/BZ/T3 14,638 120-277V 400W 12.1"x14.2" Bronze IP66 Premium
9608 150W 4000K FXSAL150/840/BZ/T3 21,163 120-277V 400-575W 12.1"x14.2" Bronze IP66 Premium
9609 150W 4000K FXSAL150/850/BZ/T3 21,118 120-277V 400-575W 12.1"x14.2" Bronze IP66 Premium
9612 320W 4000K FXSAL320/840/BZ/T3 46,227 120-277V 1000-15000W 12.1"x21.65" Bronze IP66 Premium
9613 320W 5000K FXSAL320/850/BZ/T3 46,227 120-277V 1000-15000W 12.1"x21.65" Bronze IP66 Premium
9623 100W 4000K FXSAL100/840/WH/T3 14,633 120-277V 400W 12.1"x14.2" White IP66 Premium
9624 100W 5000K FXSAL100/850/WH/T3 14,638 120-277V 400W 12.1"x14.2" White IP66 Premium
9625 150W 4000K FXSAL150/840/WH/T3 21,163 120-277V 400-575W 12.1"x14.2" White IP66 Premium
9626 150W 5000K FXSAL150/850/WH/T3 21,118 120-277V 400-575W 12.1"x14.2" White IP66 Premium
9629 320W 4000K FXSAL320/840/WH/T3 46,227 120-277V 1000-1500W 12.1"x21.65" White IP66 Premium
9630 320W 5000K FXSAL320/850/WH/T3 46,454 120-277V 1000-1500W 12.1"x21.65" White IP66 Premium
9650 100W 5000K FXSAL100/850/BK/T3 14,638 120-277V 400W 12.1"x14.20" Black IP66 Premium
9651 150W 5000K FXSAL150/850/BK/T3 21,118 120-277V 400-575W 12.1"x14.20" Black IP66 Premium
