Recessed Downlight
RL
Recessed Downlight

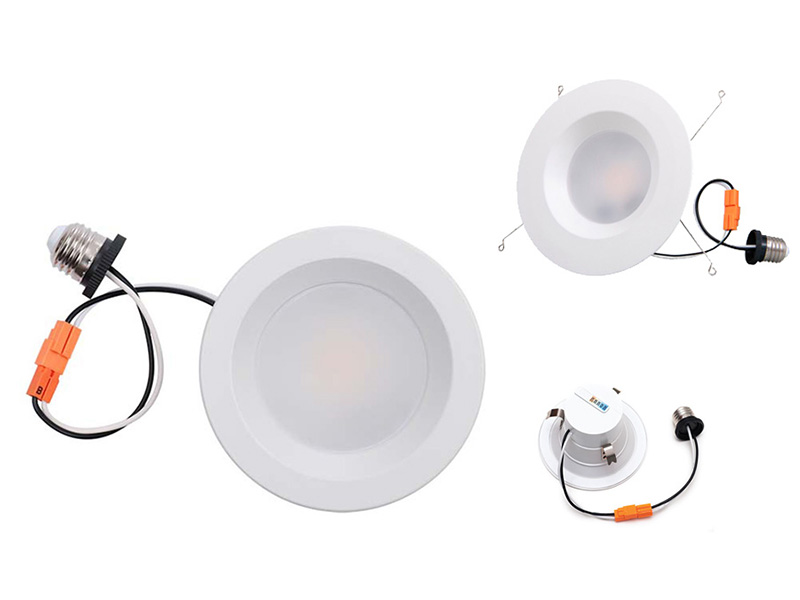

Recessed Downlight Retrofits offer you an LED lighting solution to replace 60W to 120W incandescent recessed lamp types. Designed as an energy-efficient lighting solution for the industry’s most popular 4, 5, 6 inch recessed downlight fixtures. Easy installation with Wet Location certified, our retrofit recessed downlights are dimmable, CRI 90 rated, and E26 adapter included. Available RL in 3000K or multiple temperatures which can easily select: 2700K, 3000K, 3500K, 4000K, or 5000K.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Certification |
|---|---|---|---|---|---|---|---|---|---|
| 9524 | 9W | 3000K | LED4RL9-55L930 | 550 | 120V | 60W | 4" | White | Energy Star |
| 9525 | 9W | 3000K | LED6RL14-110L930 | 1,100 | 120V | 120W | 5/6" | White | Energy Star |
| 9526 | 10W | CCT5 (27/30/35/40/50K) |
LED4RL10-75L9CCT5 | 750 | 120V | 80W | 4" | White | Energy Star |
| 9527 | 14W | CCT5 (27/30/35/40/50K) |
LED6RL14-110L9CCT5 | 1,100 | 120V | 120W | 5/6" | White | Energy Star |
Downloads
Spec Sheet View Download
Installation View Download
9524 LED4RL9-55L930
9525 LED6RL14-110L930
9526 LED4RL10-75L9CCT5
9527 LED6RL14-110L9CCT5
Accessories
-
4" Trim
P10170 RT-4RL9-BK(Black)
P10171 RT-4RL9-CH(Chrome)
P10172 RT-4RL9-CH-WH(White/Chrome)
P10176 RTS-4RL9-WH(Square White) -
5/6" Trim
P10173 RT-6RL15-BK(Black)
P10174 RT-6RL15-CH(Chrome)
P10175 RT-6RL15-CH-WH(Chrome/White)
P10404 RT-6RL15-BZ(Bronze)
P10177 RTS-6RL15-WH(Square White) -
Base
P10029 ADP-RLGU24-N
-
Emergency Driver
7337 BAEM25-170BC/347-C
