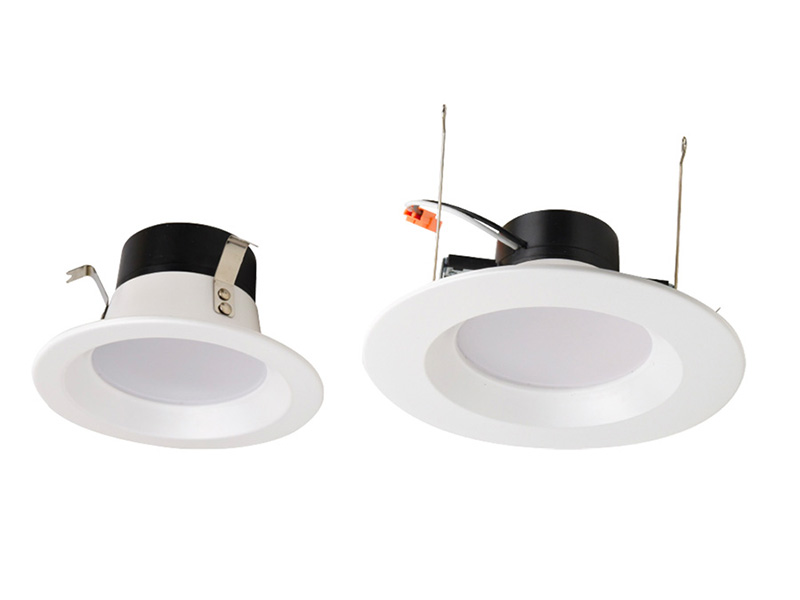

Recessed Downlight CRI90
RL
Recessed Downlight CRI90
naturaLED® Title 24/JA8-2016 Recessed Downlight (CRI90) Retrofits are a simple LED lighting solution to replace 60W to 120W incandescent recessed lamp types. Designed as an energy efficient lighting solution for the industry’s most popular 4 to 6 inch recessed downlight fixtures. Easy installation and certified Air-Tight, our retrofit recessed downlights are dimmable, CRI 90 rated and come with an E26 adapter. The 5 to 6 inch model has torsion clips that are adjustable and will easily fit in a 5 or 6 inch recessed can
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Certification |
|---|---|---|---|---|---|---|---|---|---|
| 7688 | 9W | 3000K | LED4RL9-54L930 | 540 | 120V | 60W | 4" | White | Energy Star |
| 7689 | 9W | 4000K | LED4RL9-54L940 | 540 | 120V | 60W | 4" | White | Energy Star |
| 7690 | 9W | 5000K | LED4RL9-54L950 | 540 | 120V | 60W | 4" | White | Energy Star |
| 7691 | 15W | 3000K | LED6RL15-110L930 | 1,100 | 120V | 120W | 5/6" | White | Energy Star |
Downloads
Spec Sheet View Download
Installation View Download
7688 LED4RL9-54L930
7689 LED4RL9-54L940
7690 LED4RL9-54L950
7691 LED6RL15-110L930
Accessories
-
4" Trim
P10170 RT-4RL9-BK(Black)
P10171 RT-4RL9-CH(Chrome)
P10172 RT-4RL9-CH-WH(White/Chrome)
P10176 RTS-4RL9-WH(Square White) -
5/6" Trim
P10173 RT-6RL15-BK(Black)
P10174 RT-6RL15-CH(Chrome)
P10175 RT-6RL15-CH-WH(Chrome/White)
P10177 RTS-6RL15-WH(Square White) -
Base
P10029 ADP-RLGU24-N
-
Emergency Driver
7337 BAEM25-170BC/347-C
