Commercial Strip Lights
CSL
Commercial Strip Lights

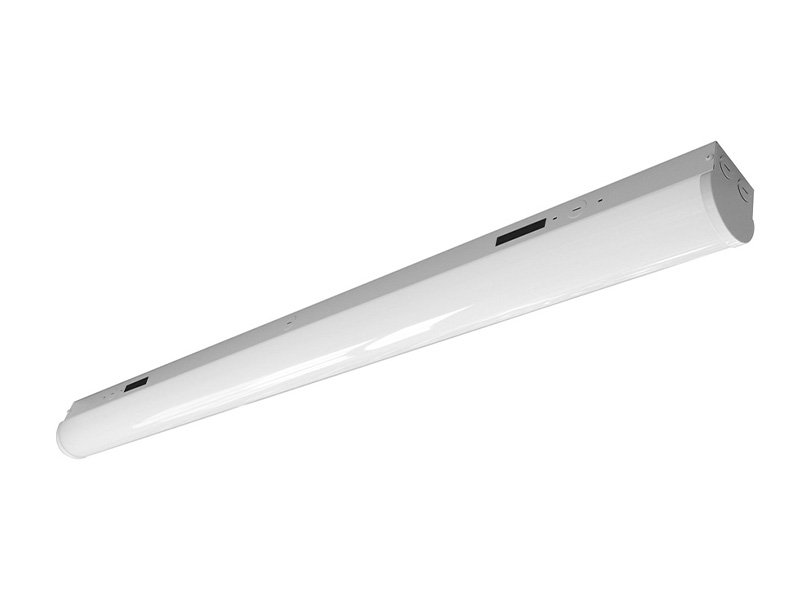

naturaLED® CSL provides the perfect solution for your lighting needs. The LED commercial strip light maximizes energy savings and is designed for multiple applications including new construction. This fixture can be used for warehouse, parking garages, stairwells, offices, hallways and many other applications in industrial and commercial. Types of installation include ceiling, wall, or cable mounting. Our commercial strip light is very versatile, efficient and is available up to 8,651 lumens, with option and availability for pre-installed Bi-level motion sensor.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Rating | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 9259 | 20W | 4000K | LED-FXCSL20/24FR/840/MV | 3,283 | 120-277V | 3 x 17W T8 | 3.25"x24" | White | Damp Location |
Standard |
| 9260 | 20W | 5000K | LED-FXCSL20/24FR/850/MV | 3,346 | 120-277V | 3 x 17W T8 | 3.25"x24" | White | Damp Location |
Standard |
| 9263 | 34W | 4000K | LED-FXCSL35/48FR/840/MV | 5,417 | 120-277V | 3 x 32W T8 | 3.25"x48" | White | Damp Location |
Standard |
| 9265 | 42W | 4000K | LED-FXCSL42/96FR/840/MV | 6,657 | 120-277V | 4 x 32W T8 | 3.25"x96" | White | Damp Location |
Standard |
| 9266 | 42W | 5000K | LED-FXCSL42/96FR/850/MV | 6,823 | 120-277V | 4 x 32W T8 | 3.25"x96" | White | Damp Location |
Standard |
| 9268 | 54W | 5000K | LED-FXCSL56/96FR/850/MV | 8,651 | 120-277V | 5 x 32W T8 | 3.25"x96" | White | Damp Location |
Standard |
| 9345 | 34W | 5000K | LED-FXCSL35/48FR/850/MV-SEN Sensor Included |
5,481 | 120-277V | 3 x 32W T8 | 3.25"x48" | White | Damp Location |
Standard |
Downloads
Spec Sheet View Download
Installation View Download
9259 LED-FXCSL20/24FR/840/MV
9260 LED-FXCSL20/24FR/850/MV
9263 LED-FXCSL35/48FR/840/MV
9265 LED-FXCSL42/96FR/840/MV
9266 LED-FXCSL42/96FR/850/MV
9268 LED-FXCSL56/96FR/850/MV
9345 LED-FXCSL35/48FR/850/MV-SEN
