Linear Architectural Light CCT5


VTL

Linear Architectural Light CCT5

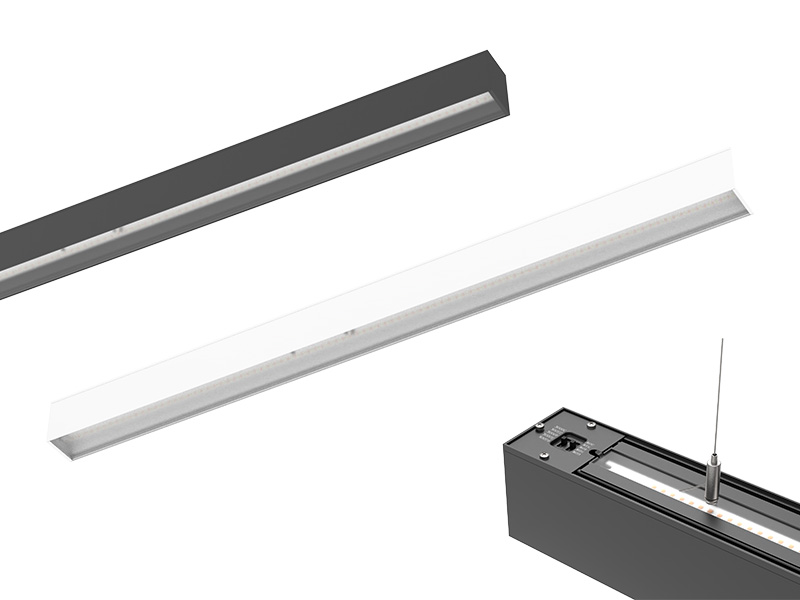

The selectable wattage LED Linear Fixture from naturaLED® is an architectural suspension light that is ideal for commercial spaces like office buildings, healthcare facilities, or even hotels. The features of the Linear Architectural Light (LAL) include: 5-color select (5CCT), 0-10V dimming, and it operates from 120-347V. The LAL fixture distributes light downward. Optional accessories of the upper light modules are available for purchase and joint connectors are available for multiple linkage. The mount can be installed either on a surface, recessed or on a wall, or with the suspension hanging kit that is included. It provides equal light distribution for a variety of commercial spaces.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color DLC
9548 15W
20W
24W
27W
30W		 CCT5
(30/35/40/50/65K)		 FXLAL30SW/24FR/8CCT5/WH/347 1,950
2,600
3,120
3,510
3,900		 120-347V 90-100W 2.56"x26" White Standard
9549 30W
35W
40W
50W
60W		 CCT5
(30/35/40/50/65K)		 FXLAL30SW/24FR/8CCT5/WH/347 3,900
4,550
5,200
6,500
7,800		 120-347V 100-300W 2.56"x48" White Standard
9551 15W
20W
24W
27W
30W		 CCT5
(30/35/40/50/65K)		 FXLAL30SW/24FR/8CCT5/WH/347 1,950
2,600
3,120
3,510
3,900		 120-347V 90-100W 2.56"x26" Black Standard
9552 30W
35W
40W
50W
60W		 CCT5
(30/35/40/50/65K)		 FXLAL30SW/24FR/8CCT5/WH/347 3,900
4,550
5,200
6,500
7,800		 120-347V 100-300W 2.56"x48" Black Standard

Downloads

  • Spec Sheet View Download
  • Installation View Download
  • 9548 FXLAL30SW/24FR/8CCT5/WH/347
  • 9549 FXLAL60SW/48FR/8CCT5/WH/347
  • 9551 FXLAL30SW/24FR/8CCT5/BK/347
  • 9552 FXLAL60SW/48FR/8CCT5/BK/347

Accessories
