Back-Lit Flat Panels Single & CCT3


PNL

Back-Lit Flat Panels Single & CCT3

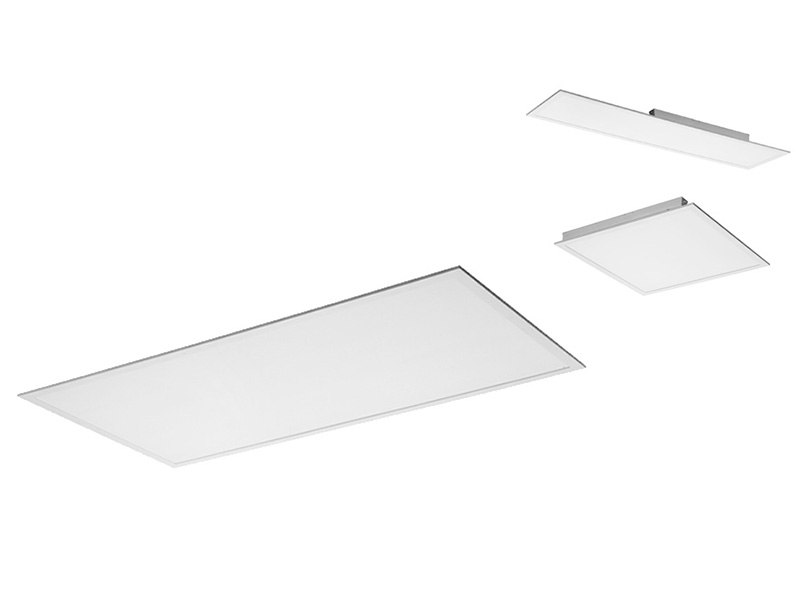

naturaLED® features qualified DLC Back-Lit Flat Panels (PNL), an integrated LED technology with a low profile design single CCT and CCT selectable (3500K, 4000K, 5000K) and comes with additional 12V output for your control and accessories needs. This lightweight LED provides a smooth and uniform light distribution from edge-to-edge for an even and consistent color design. Perfect solution for your interior lighting needs for offices, schools, and meeting rooms. The Back-Lit Flat Panels are easily installed with maximum energy savings; comes in standard configurations of 2’x2’, and 2’x4’ for mounting in T-Bar/Grid ceilings or optional surface mount box kit.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Certification DLC
9462 40W CCT3
(35/40/50K)		 FXPNL40/1x4/8CCT3 4,480 120-277V 90-100W 1'x4' White Damp
Location		 Standard
9669 20W
30W
40W		 CCT3
(35/40/50K)		 PNL40S/2x2/8C3-PK2 2,200
3,300
4,400		 120-277V 90-100W 2'x2' White Damp
Location		 Standard
9670 30W
40W
50W		 CCT3
(35/40/50K)		 PNL50S/2x4/8C3-PK2 3,300
4,400
5,500		 120-277V 120-130W 2'x4' White Damp
Location		 Standard
7526 23W
29W
38W		 CCT3
(35/40/50K)		 FXPNL38SW/2x2/8CCT3 2,714
3,335
4,180		 120-277V 90-100W 2'x2' White Damp
Location		 Standard
7527 28W
39W
46W		 CCT3
(35/40/50K)		 FXPNL46SW/2x4/8CCT3 3,360
4,524
5,280		 120-277V 120-130W 2'x4' White Damp
Location		 Standard
9665 23W CCT3
(35/40/50K)		 FXPNL23/2X2/8CCT3 2,714 120-277V 90-100W 2'x2' White Damp
Location		 Standard
9666 29W CCT3
(35/40/50K)		 FXPNL29/2X2/8CCT3 3,335 120-277V 90-100W 2'x2' White Damp
Location		 Standard
9667 28W CCT3
(35/40/50K)		 FXPNL28/2X4/8CCT3 3,360 120-277V 120-130W 2'x4' White Damp
Location		 Standard
9668 39W CCT3
(35/40/50K)		 FXPNL39/2X4/8CCT3 4,524 120-277V 120-130W 2'x4' White Damp
Location		 Standard
