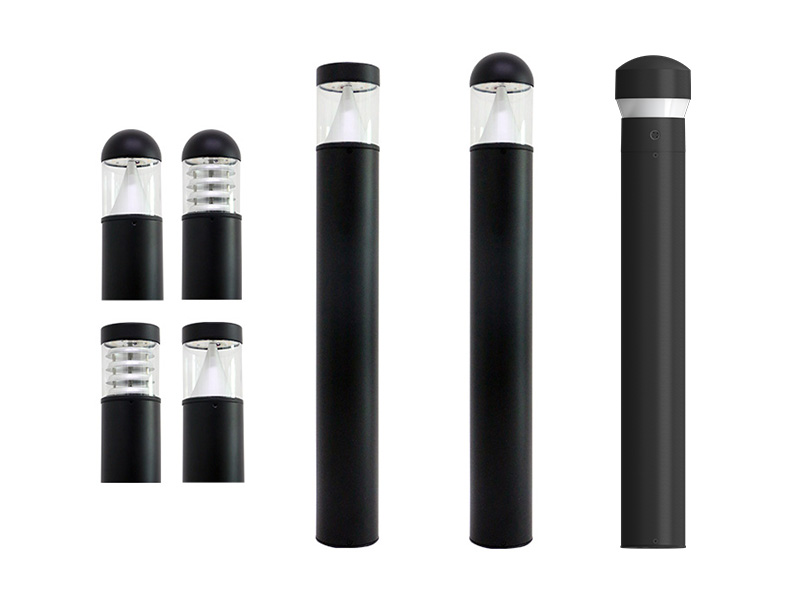

5.5 Bollard CCT3


BLD

5.5 Bollard CCT3

naturaLED® 5.5 BLD bright pathway lighting is important for the safety of pedestrian foot traffic. Ensuring that sidewalks and pavement are well lit reduces the risk of people tripping and falling. The superior quality of our DLC Bollard light fixture provides glare-free lighting with selectable wattages and color temperature that replaces up to 2,100 lumens.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Style Size Color Certification
7742 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RDM/8CCT3/BK-PH 700
1,050
1,260		 120-277V 100W Round Dome 6.5"x42" Black Energy Star
7745 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/32RDM/8CCT3/BK-PH 700
1,050
1,260		 120-277V 100W Round Dome 6.5"x32" Black Energy Star
7669 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RDM/8CCT3/BZ-PH 700
1,050
1,260		 120-277V 100W Round Dome 6.5"x42" Bronze Energy Star
7740 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RLO/8CCT3/BK 600
900
1,080		 120-277V 100W Round Louver Open 5.5"x42" Black Energy Star
7741 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RLF/8CCT3/BK 500
750
900		 120-277V 100W Round Louver Frosted 5.5"x42" Black Energy Star
7667 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RLO/8CCT3/BZ 600
900
1,080		 120-277V 100W Round Louver Open 5.5"x42" Bronze Energy Star
7668 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RLF/8CCT3/BZ 600
900
1,080		 120-277V 100W Round Louver Frosted 5.5"x42" Bronze Energy Star
9643 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/41FCN/8CCT3/BK 1,228
1,875
2,251		 120-277V 100W Flat Cone Reflector 5.5"x41" Black DLC Premium
9644 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/41FLV/8CCT3/BK 1,200
1,800
2,160		 120-277V 100W Flat Louver Reflector 5.5"x41" Black -
9645 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RCN/8CCT3/BK 1,228
1,875
2,251		 120-277V 100W Round Cone Reflector 5.5"x42" Black DLC Premium
9646 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/42RLV/8CCT3/BK 1,200
1,800
2,160		 120-277V 100W Round Louver Reflector 5.5"x42" Black -
7743 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/32RLO/8CCT3/BK 600
900
1,080		 120-277V 100W Round Louver Open 5.5"x32" Black Energy Star
7744 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/32RLF/8CCT3/BK 500
750
900		 120-277V 100W Round Louver Frosted 5.5"x32" Black Energy Star
9699 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/32RCN/8CCT3/BK 1,228
1,875
2,251		 120-277V 100W Round Cone Reflector 5.5"x32" Black DLC Premium
9700 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/32RLV/8CCT3/BK 1,200
1,800
2,160		 120-277V 100W Round Louver Reflector 5.5"x32" Black -
9697 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/31FCN/8CCT3/BK 1,228
1,875
2,251		 120-277V 100W Flat Cone Reflector 5.5"x31" Black DLC Premium
9698 10W
15W
18W		 3CCT
(30/40/50K)		 FX5.5BLD18SW/31FLV/8CCT3/BK 1,200
1,800
2,160		 120-277V 100W Flat Louver Reflector 5.5"x31" Black -
