Center Basket Troffers G1

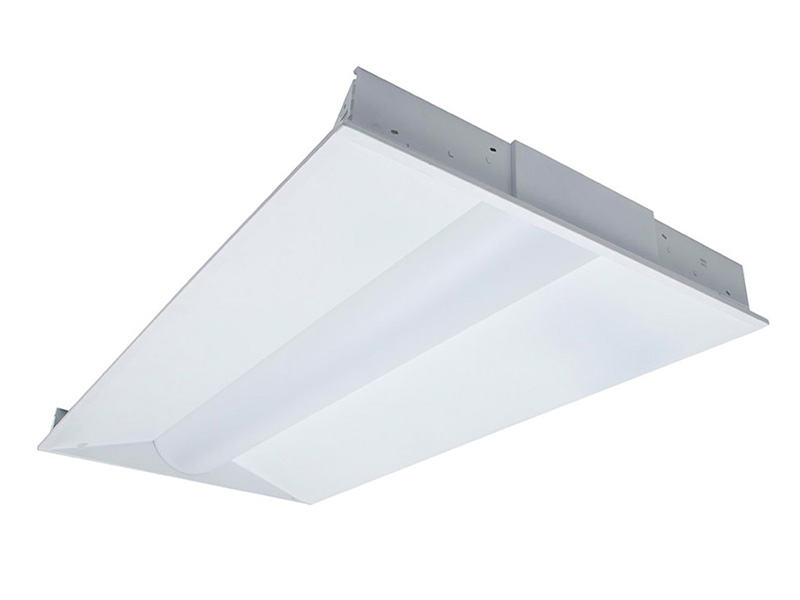

naturaLED® Troffer is the perfect solution for your interior lighting needs. Our Troffer is available in 2’x2’ and 2’x4’ dimensions for TBar/Grid ceilings. Available options include Emergency LED Driver and Microwave Motion Sensor. This is a lightweight fixture with a bug-free lens design and produces up to 5,850 lumens with excellent light distribution and color consistency.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Size | Color | Certification | DLC |
|---|---|---|---|---|---|---|---|---|---|---|
| 9236 | 20W | 4000K | LED-FXTF20/2x2/840G1 | 2,620 | 120-277V | 60-70W | 2'x2' | White | Damp Location |
Standard |
| 9237 | 20W | 5000K | LED-FXTF20/2x2/850G1 | 2,640 | 120-277V | 60-70W | 2'x2' | White | Damp Location |
Standard |
| 9238 | 30W | 3500K | LED-FXTF30/2x4/835G1 | 3,810 | 120-277V | 90-100W | 2'x4' | White | Damp Location |
Standard |
| 9239 | 30W | 4000K | LED-FXTF30/2x4/840G1 | 3,900 | 120-277V | 90-100W | 2'x4' | White | Damp Location |
Standard |
| 9240 | 30W | 4000K | LED-FXTF30/2x4/850G1 | 3,900 | 120-277V | 90-100W | 2'x4' | White | Damp Location |
Standard |
| 9241 | 45W | 3500K | LED-FXTF45/2x4/835G1 | 5,715 | 120-277V | 120-130W | 2'x4' | White | Damp Location |
Standard |
| 9242 | 45W | 4000K | LED-FXTF45/2x4/840G1 | 5,850 | 120-277V | 120-130W | 2'x4' | White | Damp Location |
Standard |
| 9243 | 45W | 5000K | LED-FXTF45/2x4/850G1 | 5,850 | 120-277V | 120-130W | 2'x4' | White | Damp Location |
Standard |
Downloads
Spec Sheet View Download
Installation View Download
9236 LED-FXTF20/2x2/840G1
9237 LED-FXTF20/2x2/850G1
9238 LED-FXTF30/2x4/835G1
9239 LED-FXTF30/2x4/840G1
9240 LED-FXTF30/2x4/850G1
9241 LED-FXTF45/2x4/835G1
9242 LED-FXTF45/2x4/840G1
9243 LED-FXTF45/2x4/850G1
