Adjustable Slim Wall Pack
SWP
Adjustable Slim Wall Pack

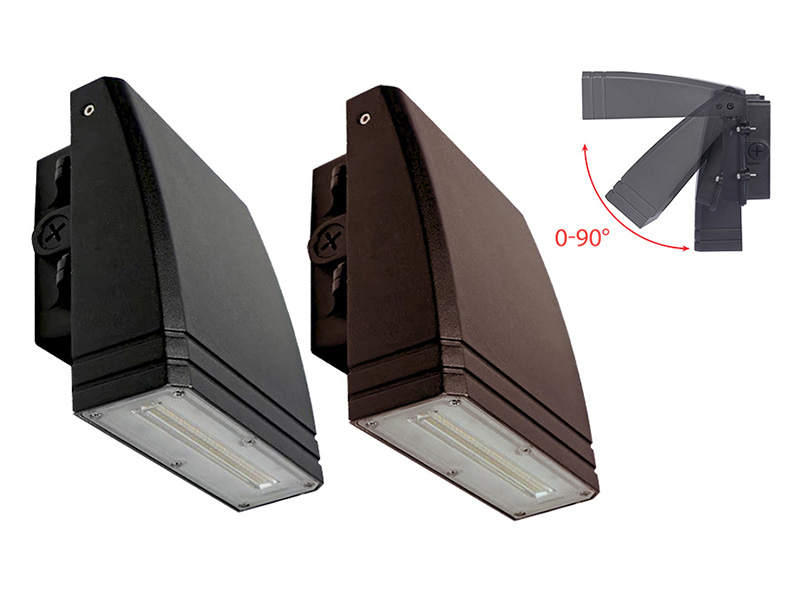

naturaLED® slim, low-profile cutoff wall pack with the smooth contemporary design. Well-engineered, high-quality die-cast aluminum, delivering bright, crisp light. The excellent thermal design ensures our SWP’s performance over rated life. Installation is made simple and easy with an adjustable angle and hinged junction box. Our Slim Wall Packs are available in 15W, 28W and 45W with color options of Black and Bronze. Optional ¾” knuckle-mount, adjustable swivel bracket or slip fitter provides you the flexibility for your application. SWP is ideal for landscape, wall/surface, low-level pathway, apartment buildings, schools and multi-use facilities.
| SKU | Wattage | CCT | Product Description | Lumens | Voltage | Equivalent Wattage |
Color | DLC |
|---|---|---|---|---|---|---|---|---|
| 9302 | 15W | 5000K | LED-FXSWP15/850/DB | 2,062 | 120-277V | 100W | Bronze | - |
| 9308 | 15W | 5000K | LED-FXSWP15/850/BK | 2,062 | 120-277V | 100W | Black | - |
| 9304 | 28W | 5000K | LED-FXSWP28/850/DB | 3,513 | 120-277V | 175W | Bronze | Premium |
| 9309 | 28W | 4000K | LED-FXSWP28/840/BK | 3,418 | 120-277V | 175W | Black | Premium |
| 9310 | 28W | 5000K | LED-FXSWP28/850/BK | 3,513 | 120-277V | 175W | Black | Premium |
| 9311 | 45W | 4000K | LED-FXSWP45/840/BK | 5,539 | 120-277V | 250W | Black | Premium |
| 9312 | 45W | 5000K | LED-FXSWP45/850/BK | 5,680 | 120-277V | 250W | Black | Premium |
Downloads
Spec Sheet View Download
Installation View Download
9302 LED-FXSWP15/850/DB
9308 LED-FXSWP15/850/BK
9304 LED-FXSWP28/850/DB
9309 LED-FXSWP28/840/BK
9310 LED-FXSWP28/850/BK
9311 LED-FXSWP45/840/BK
9312 LED-FXSWP45/850/BK
Accessories
-
Knuckle Mount
P10075 MT-KNC-SWP/DB(Bronze)
P10006 MT-KNC-SWP/BK(Black) -
Swivel Bracket
P10074 MT-SB-SWP/DB(Bronze)
P10005 MT-SB-SWP/BK(Black) -
Slip Fitter
P10076 MT-SF-SWP/DB(Bronze)
P10007 MT-SF-SWP/BK(Black) -
Photocell
P10036 SEN-PHO-BT-MT/MV
