Traditional Wall Pack

TWP

Traditional Wall Pack

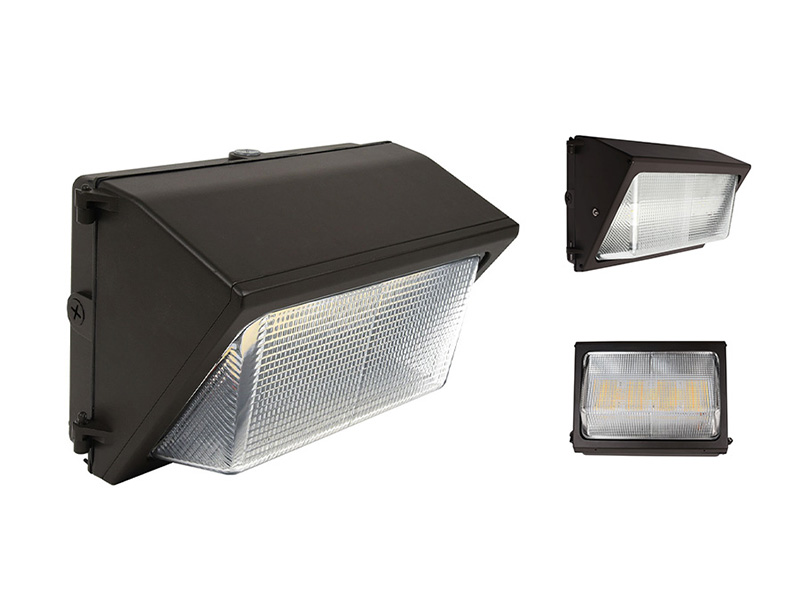

naturaLED® TWP traditional wallpack comes in rugged cast-aluminum housing with excellent thermal design. DLC Premium qualified, our TWP product offers a popular classic appearance for your needs. The traditional shape maintains an aesthetic appearance and will replace any building’s wallpack or perimeter lighting. Ideal for outdoor applications such as carports, loading areas, driveways, parking area and pathways. Designed for wall mounting above four feet from ground. New availabe in Wattage Selectable and Color Temperature Selectable option. *Requires an easy installation using the connectors to activate photocell sensor.

SKU	Wattage	CCT	Product Description	Lumens	Voltage	Equivalent Wattage	Color	Rating
7756	28W	3000K	LED-FXTWP28/30K/DB	3,448	120-277V	175W	Bronze	IP65
7777	58W	4000K	LED-FXTWP55/40K/DB	8,382	120-277V	400W	Bronze	IP65
7758	59W	4000K	LED-FXTWP59/30K/DB	7,128	120-277V	250-400W	Bronze	IP65
7088	60W	3000K	LED-FXTWP59/30K/DB	7,128	120-277V	250-400W	Bronze	IP65

Downloads

• Spec Sheet View Download

• Installation View Download

---

• 7756 LED-FXTWP28/30K/DB Spec IES

• 7777 LED-FXTWP55/40K/DB Spec IES

• 7758 LED-FXTWP59/30K/DB Spec IES

• 7088 LED-FXTWP60/40K/DB Spec IES

Accessories

• Emergency Driver

  7334 BAEM15-48BC/MV-A (#7777,7758,7088)
  7336 BAEM4-60BC/MV-A (#7756)

• Motion Sensor

  P10234 SEN-MC605V-D

• Wireguard

  P10004 WG-TWP-MEDIUM (Size:14.30"x9.20")

• Photocell

  P10036 SEN-PHO-BT-MT/MV

• Replacement Glass Lens

  P10002 LENS-TWP-SMALL (8.66"x7.25")
  P10000 LENS-TWP-MEDIUM (14.50"x9")
  P10001 LENS-TWP-LARGE(18.5"x9")

• Replacement Plastic Lens

  P10003 LENS-TWP-PC-MEDIUM (14.50"x9")

• Shield

  P10022 CVR-TWP-MEDIUM/DB (14.5"x9")
  P10023 CVR-TWP-LARGE/DB (18.5"x9")
